1.Oily water separator/15 ppm OIL Content Monitor (15ppm Bilge Alarm)
JAPAN   TAIKO/FELLOW
KOREA HANG YOUNG
SHANGHA Shijiu Marine
CHINA Jiu Jiang Gong Chuang Machinery
ENGLAND RTE/OMD

2.Sewage treatment plants
      JAPAN TAIKO
SHANGHA Shijiu Marine

3.RO water marker system
TAIWAN SEAWORTHY
AMERICA PARKER VILLAGE

4.Evaporation water maker system
SPAIN AQUAMAR
DENMARK ATLAS

5.Air compressor
      BELGIUM ATLAS COPCO

6.Level master
      SWEDEN KOCKUM

7.Purifier
      TAIWAN MB-200

8. Fuel mill
      GERMAY DREW

9. Watertight Door
      GERMAY SCHOENROCK

10. Calorifier
     TURKEY TRUE TECH

11. Electric Chain Hoist
      KOREA DK HOIST

12. Pump
      JAPAN TAIKO
ITALI GIANNESCHI

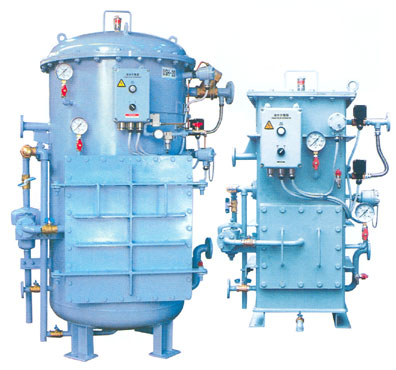

  TAIKO OILY WATER SEPARATOR


※Specifications

Model

Capacity (metric ton/hour)

USH-01
0.15
USH-03
0.25
USH-05
0.5
USH-10
1.0
USH-20
2.0
USH-50 5.0

1.New Development: A high-performance coalescer capable of theating emulsions is incorporated. Significantly Improved
    service life (more than 1.5 times in our company's comparison.)
2.A cyllndrlcal package type with an installation area as small as the space-saving types of conventional separators.
3.An independent oil level and automatic oil drain valve provided in both the 1st and 2nd chamber realizes a full automatic
   run.
4.A large-diameter oil drain valve allows easy discharge of even a highly viscous oil.
5.A strainer provided as a standard accessory prevents coalescer from being clogged by dust.
6.A safety valve is provided as a standard accessory, protecting the separator body and coalescer from damage. ( As per
   the USCG requirement.)
7.Stainless steel (SUS304) is used not only for corrosive portions of nozzle but also for parts round coalescer which
   constitute an essential part of the separator.
8.Further sharp reduction of manpower for maintenance operations such as coalescer replacement.

"Downlond the detailed data!"

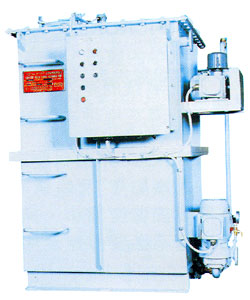

TAIKO SEWAGE TREATMENT DEVICE

         The Taiko Ships Clean “SBT Series “are compact sized sewage treatment system with superior performance capabilities, designed exclusively for marine installations, and which were developed by TAIKO with high technology of many years experiences for Maritime Public Nuisance.

Due to the use of a “Submerged Bio-Filter Treatment System” and the disposition of the sterilization compartment in the center, the appearance of the device becomes more smaller. And it enhances the stable for the sway of the boat. Anyhow, it is a technological product.

These devices can be installed in all vessels of 200GT or more gross tons, or accommodating 10 or more peoples as described in the Annex IV of MARPOL TREATY 73/78. It becomes more easier in the operation and maintenance.

Water treatment, USCG regulations (33CFR159) Type II MSD (Marine Sanitation Device : Ships sewage treatment plant) emissions baseline is still, MEPC2 (VI) emission baseline values have sufficient spare.

This treatment plant purification capacity, as shown in the table below.
BOD5……………………………………………………below 50ppm
SS………………………………………………………below 50ppm
COLIFORM………………………………………below 200/ l00ml

SBT-15
SBT-25
SBT-40
SBT-65
Number of persons........ persons/day
15
25
40
65
Average of sewage processed .....L/day
900
1500
2400
3900
Processed amount of sewage....L/inch×freqency/day
94×3
156×3
250×3
406×3
BOD5 amount g/day
202.5
337.5
540
877.5

Blower

Air flow                       m3/min
0.22
0.37
0.60
0.98
Pressure

kgf/cm2

0.2
Motor power Input

KW

0.4
0.4
0.75
0.75

Discharge

Pump Capacity

m3/Hr

7
Head

m

20
Motor Power Input

KW

1.5
440V     60Hz                         A
4.1
4.1
4.8
4.8
220V     60Hz                         A
8.1
8.1
9.4
9.4

※Control Source (110V×Single Phase) is self-generated by a transformer inside the Control Panel.
Note : 1.Black Water : 60 L/person/day
           2.BOD:13.5g/person/day

  "Downlond the detailed data!"

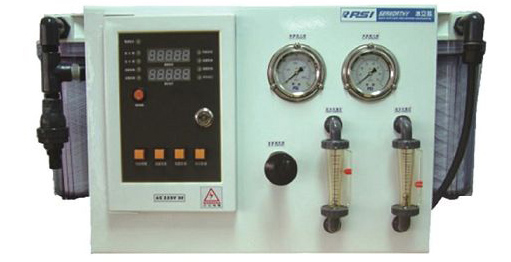

  SEAWORTHY

‧ SEAWORTHY Series are specifically designed for small up to medium size vessels
    (such as overseas going fishing boat, cruising yacht, ferry, coast guard etc.) & Islands.
‧Compact-limited space, easy installation & operation.
‧Lower operation cost, Long maintenance frequency & lower spare part needs.

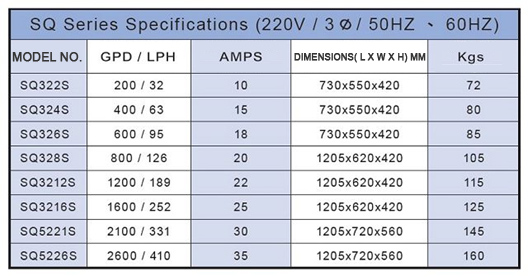

‧SEAWORTHY series are designed for using the power supply of 220 VAC, 3 Ph, 50Hz or 60Hz.

    If it is necessary to use 220 VAC, 1 Ph or any other voltage, please consult your distributor for details on the
    correct use of this unit.



AQUAMAR Fresh Water Generators

1.The AQUAMAR Fresh Water Generators are designed based on the principle that the sea water can be   evaporated under the temperature of 50℃ using a high vacuum to make sea water entered inside. It uses excesses heat which is obtained from the cooling water of the main or auxiliary engines to have sea water to be evaporated quickly to become fresh water. ( any kind of heat can be used as heating conduction, such ad steam, thermal oil, etc.)

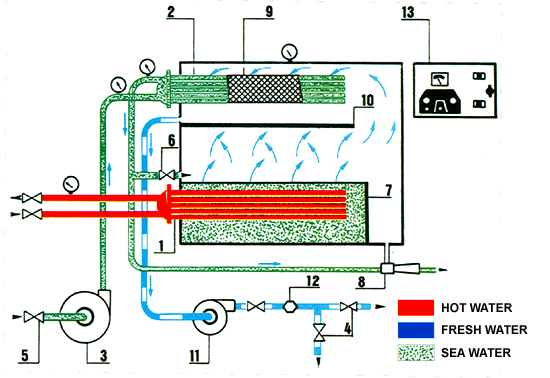

2.The Fresh Water Generator is a compact device ready for installation on board. The evaporator and condenser are located inside the housing and separated by a demister which prevents water drops passing directly on to the condenser.

1
HEATER
2

CONDENSER

3
CIRCULATING PUMP
4
SOLENOID VALVE
5
SUCTION VALVE
6
FEED CONTROL VALVE
7
BRINE SPILLOVER WEIR
8
AIR AND BRINE EJECTOR
9
STEAM SEPARATOR
10
DISTILLATE TRAY
11
FRESH WATER PUMP
12
SALINITY CELL
13
CONTROL PANEL
Model

Create water daily (Tons)

AQ1/2
1-2
AQ2/3
2-3
AQ3/4
3-4
AQ4/5
4-5

another larger water system type, welcome contact us, the largest-standard 100-120 Tons/day



Fuel Mill MC,Dynamic homogenizer
The Fuel Mill dynamic homogenizer is a milling machine that physically grinds the fuel as it is pumped through the handing system.
It serves three primary functions providing continuous treatment of several expensive problems of residual fuels.

Asphaltic particles are cut to less than 3~5 microns in size to enable smaller particles passing through purifier.

you will feel the sludge outputs are greatly reduced.

As well as improved combustion, fewer harmful carbon deposits and lower equipment maintenance costs.

Fuel can be homogenized with injected fresh water. The grease emulsification can improve combustion to reduce.

nitrous-oxide (NOx) emissions obviously.
   The Fuel Mill™ dynamic homogenizer pays for itself

Ecological Improvements

Economic Benefits

Reduced sludge output from purifiers Lower sludge discharge costs

Optimized combustion at all loads Increased yield of burnable fuel

Reduced exhaust soot deposits Improved fuel nebulization

Reduced soot and particulate emissions Reduced injector wear

Lower NOx emissions Lower maintenance costs

 "Specifications" FULE MILLER, the best method to choose is according to the ship's fuel consumption prevail. The type specifications can be operated under 15 ° C and 150 bar, AC220/440V, 50/60HZ.

Model Capacity (metric ton/hour) Output(KW) Weight(KG) Size (mm)

FM-100 1.0-3.0 7.5 240 945×470×450
FM-130 3.0-7.0  15 275 945×470×460
FM-220 7.0-30.0 18.5  450 1185×560×575
